Reduction Sleeve(Through Hole)

Name: Reduction Sleeve（Through-Hole） for Swiss Lathe Tsugami / Citizen / Star
Brand: PRECOLLET

Tooling Type: Accessories

This through-hole reduction sleeve is designed to be mounted inside the tool holder (power or static) of a Swiss-type lathe. It reduces the holder bore (e.g., Ø20mm) to a smaller diameter (e.g., Ø16mm or Ø14mm) to accept standard tool holders, collet chucks, or extensions.

The through-hole design allows long bar stock or coolant passage.

100% Compitable with Tsugami Star Citizen Swsiss slide head lathe

Inquiry

Download

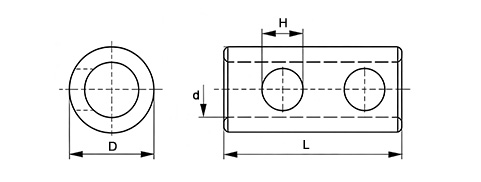

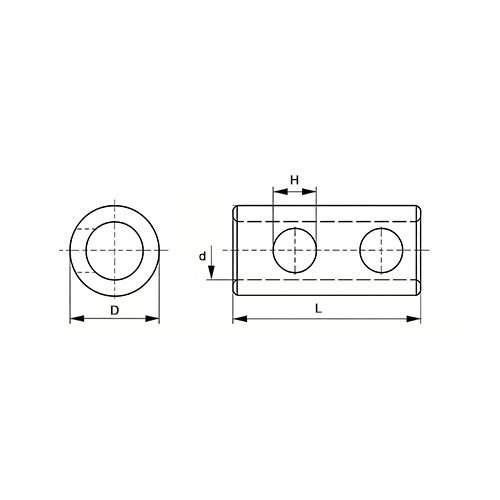

Part No Guide and Dimension

PART NO.	D	d	Application	Machine Brand	H	L
TRST2014	20	14	BO20 BO12	TSUGAMI	10	40.5
TRST2016	20	16	BO20 BO12	TSUGAMI	10	40.5
TRSTS2214	22	14	S20 Main Spindle	TSUGAMI	10	47.5
TRSTS2216	22	16	S20 Main Spindle	TSUGAMI	10	47.5
TRSTS2220	22	20	S20 Main Spindle	TSUGAMI	10	47.5
TRST62514	25	14	BO26	TSUGAMI	10	50
TRST62516	25	16	BO26	TSUGAMI	10	50
TRST62520	25	20	BO26	TSUGAMI	10	50
TRST62522	25	22	BO26	TSUGAMI	10	50
TRSS2214	22	14	Main Spindle	STAR	10	51
TRSS2216	22	16	Main Spindle	STAR	10	51
TRSS2220	22	20	Main Spindle	STAR	10	51
TRSC1125414	25.4	14	A20 T11-T13	CITIZEN	10	45
TRSC1125416	25.4	16	A20 T11-T13	CITIZEN	10	45
TRSC11254195	25.4	19.05	A20 T11-T13	CITIZEN	10	45
TRSC1125422	25.4	22	A20 T11-T13	CITIZEN	10	45
TRSC1425414	25.4	14	A20 T14	CITIZEN	10	37
TRSC1425416	25.4	16	A20 T14	CITIZEN	10	37
TRSC14254195	25.4	19.05	A20 T14	CITIZEN	10	37
TRSC1425422	25.4	22	A20 T14	CITIZEN	10	37
TRSC3125414	25.4	14	A20 T31-T34	CITIZEN	10	40
TRSC3125416	25.4	16	A20 T31-T34	CITIZEN	10	40
TRSC31254195	25.4	19.05	A20 T31-T34	CITIZEN	10	40
TRSC3125422	25.4	22	A20 T31-T34	CITIZEN	10	40
TRSC12190514	19.05	14	L12	CITIZEN	10	45
TRSC12190516	19.05	16	L12	CITIZEN	10	45
TRSCE190514	19.05	14	End Face	CITIZEN	10	45
TRSCE190516	19.05	16	End Face	CITIZEN	10	45
