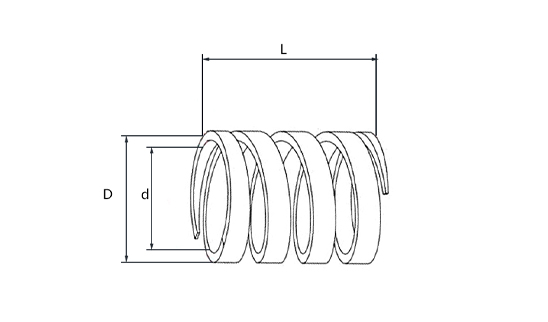

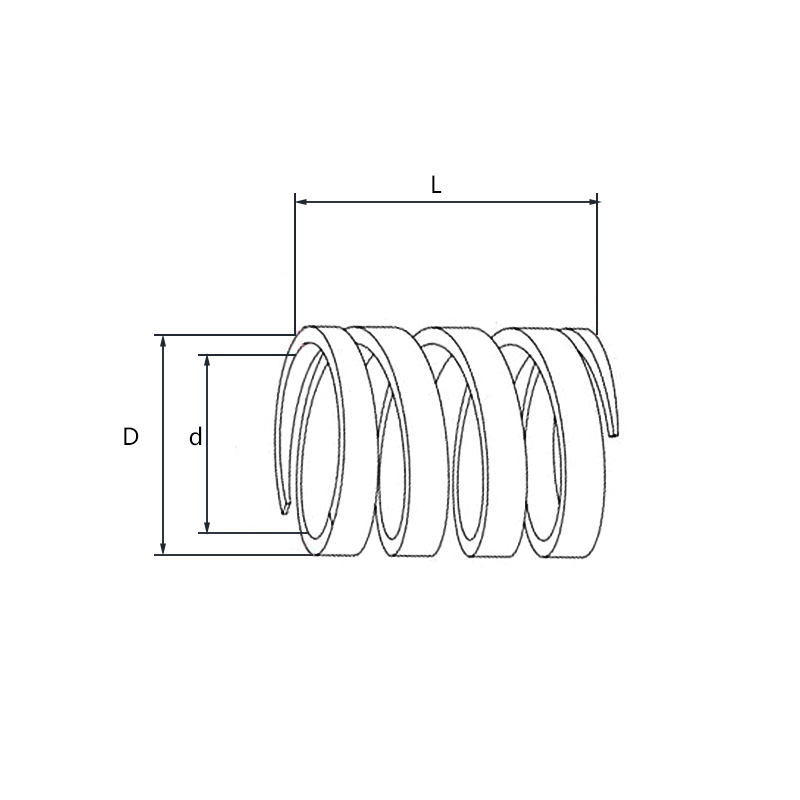

Pressure spring for collet, collet sleeve.A important part of the clamping system.
| PART NO. | D | d | L |
| PSP33-72.5 | 36.8 | 33 | 72.50 |
| PSP29-62 | 32.6 | 29 | 62.00 |
| PSP33.6-75 | 36.8 | 33.6 | 75.00 |
| PSP21-31 | 25.9 | 21 | 31.00 |
| PSP26.2-52 | 29.9 | 26.2 | 52.00 |
| PSP22-46 | 25.7 | 22 | 46.00 |
| PSP21-40 | 25 | 21 | 40 |
| PSP28.8-32 | 32.5 | 28.8 | 32.00 |
| PSP32.6-58 | 36.6 | 32.6 | 58.00 |
| PSP28.7-32 | 32.8 | 28.7 | 32.00 |
| PSP23.9-35 | 27.9 | 23.9 | 35.00 |
| PSP28.5-35 | 32.5 | 28.5 | 35.00 |
| PSP23.9-35 | 27.5 | 23.9 | 35.00 |
| PSP24-34 | 27.9 | 24 | 34.00 |
| PSP16.4-35 | 19.9 | 16.4 | 35.00 |
| PSP19-30 | 23.6 | 19 | 30.00 |
| PSP33-45 | 36.8 | 33 | 45.00 |
| PSP33.5-70 | 36.8 | 33.5 | 70.00 |
| PSP13.5-32.5 | 15.9 | 13.5 | 32.50 |
| PSP13.5-30.7 | 15.8 | 13.5 | 30.70 |
| PSP17-30 | 19.6 | 17 | 30.00 |
| PSP17-26 | 19.6 | 17 | 26.00 |
| PSP33.6-66 | 36.8 | 33.6 | 66.00 |
